Highlights Overview.
Watch the film
△E<1.5
TX · RX · Monitor
QD-LCD
1 TX & Unlimited RX
Focus Mode
Pyro Ecosystem
1000m Range
1500nits

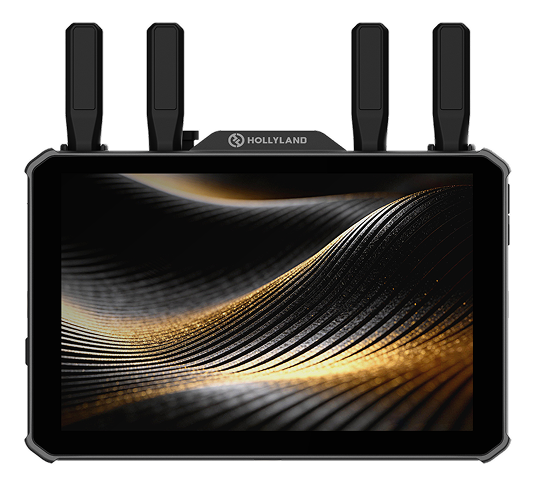

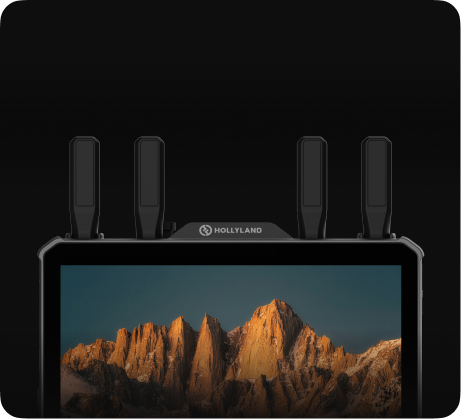

TX · RX · Monitor All-in-One
Master on-camera, focus pulling, and mobile director monitoring workflows with Pyro 7
Ultra—your all-in-one monitor and wireless transmission system.
Pristine Color. Calibrated for Pros.
Color Accuracy Delta E < 1.5
Color Fidelity [1] 95% DCI-P3
Grayscale Gamma 2.4
Daylight-Viewable 1500 nits
Delta E < 1.5 Every Pyro 7 Ultra undergoes rigorous factory calibration via Calman® software to deliver broadcast-grade reference standards right out of the box.
95% DCI-P3 Cinema-grade color with richer tones and smoother gradients for lifelike visuals.
Gamma 2.4 Enhanced midtone control and contrast for consistent, cinematic on-set monitoring.
1500 nits Clear viewing in outdoor and high-light conditions.

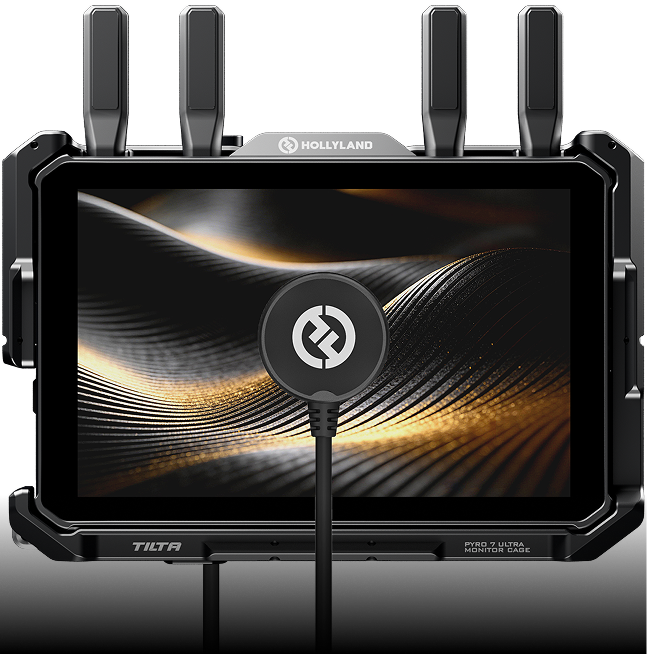

Ultra-accuracy. PC-Free. 3-Minute Calibration.
Eliminate the pain of complex setups and mismatched third-party probes. As the industry’s only fully
integrated original ecosystem, simply plug the Hollyland Color Calibrator [2] via USB-C for
PC-free, flawless color fidelity in just 3 minutes.

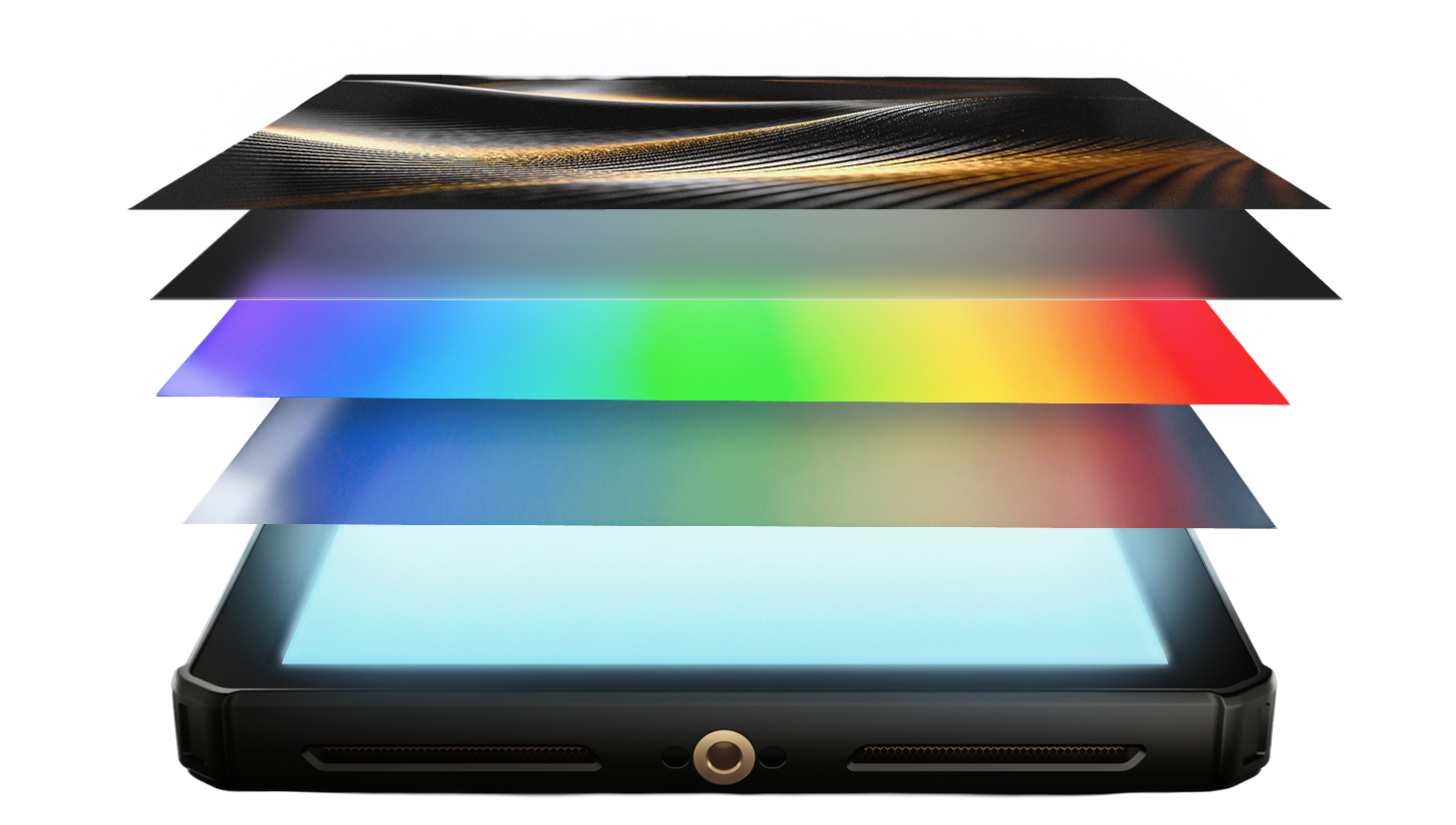

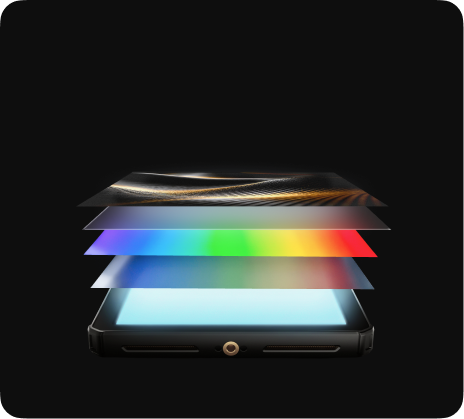

QD-LCD Optical Architecture for Exceptional Color Purity QD-LCD Optical Architecture
for Exceptional Color Purity
Pyro 7 Ultra incorporates a professional QD-LCD Optical Architecture, channeling blue LED light directly into a proprietary Quantum Dot Enhancement Film (QDEF). This specialized nanostructure converts the light into narrow-band red and green states to synthesize a high-purity RGB spectrum, delivering exceptional color purity with cinematic depth.
Pyro 7 Ultra incorporates a professional QD-LCD Optical Architecture, channeling blue LED light directly into a proprietary Quantum Dot Enhancement Film (QDEF). This specialized nanostructure converts the light into narrow-band red and green states to synthesize a high-purity RGB spectrum, delivering exceptional color purity with cinematic depth.
Next-Gen Interactivity
& Control
Built for fast-paced professional workflows, the reimagined HollyOS UI
drives direct, hardware-level display controls [3] and supports customizable templates with quick-toggle image analysis modules.
Built for fast-paced professional workflows, the
reimagined HollyOS UI drives direct, hardware-level display controls [3] and supports customizable templates
with quick-toggle image analysis modules.
Image Analysis
Advanced analysis tools [4] paired with granular parameter control for absolute on-set visual precision.
Advanced analysis tools [4] paired with granular parameter control for absolute on-set visual precision.
Waveform
Histogram
Focus Peaking
LUT
False Color
Camera Control

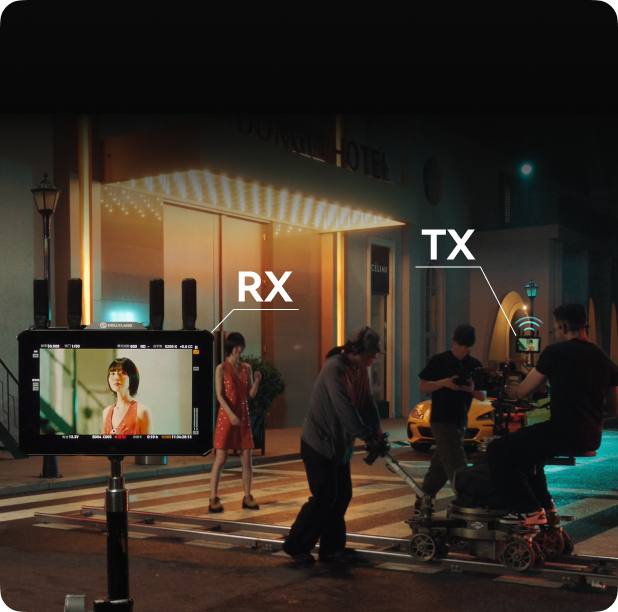

By integrating official SDKs from leading camera brands, Pyro 7 Ultra unlocks a rich array of
features with smooth, native responsiveness. You can effortlessly toggle control between the
camera-top transmitter and wireless receiver— transitioning between local adjustments and long-range
rigging to suit any scenario.
View Compatible Cameras
Proprietary Dual-Band Transmission
Proprietary TWiFi (Twin-WiFi) technology redefines signal resilience by establishing a synchronized
“twin-path” across both 2.4G and 5G spectrums. This link triggers
automatic
frequency hopping to avoid congested channels in signal-heavy environments—unlocking the same
extensive transmission distance, ultra-low latency, and unlimited receiver expansion proven by Pyro Ultra.
Infinite Reach
1 TX & Unlimited RX [5]
Dual-Band
2.4 GHz & 5 GHz
Video Transmission
4K60

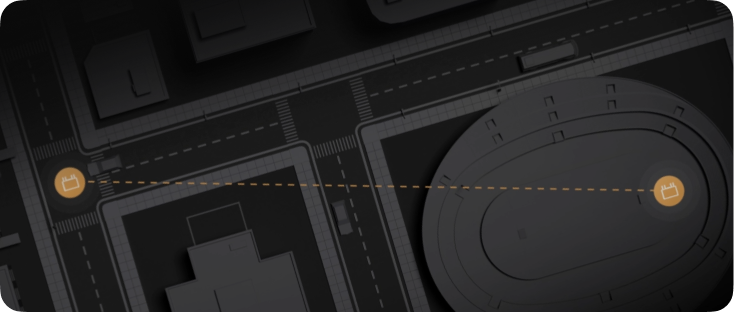

Range
3,300 ft (1km)
Ultra-Low Latency
20ms [6]

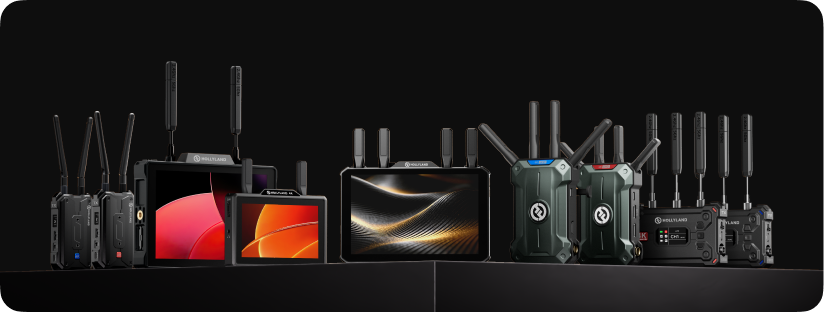

Pyro Synergy
Deeply integrated with the Pyro series [7] to deliver proprietary ecosystem synergy and
streamlined multi-device pairing.
Universal Compatibility

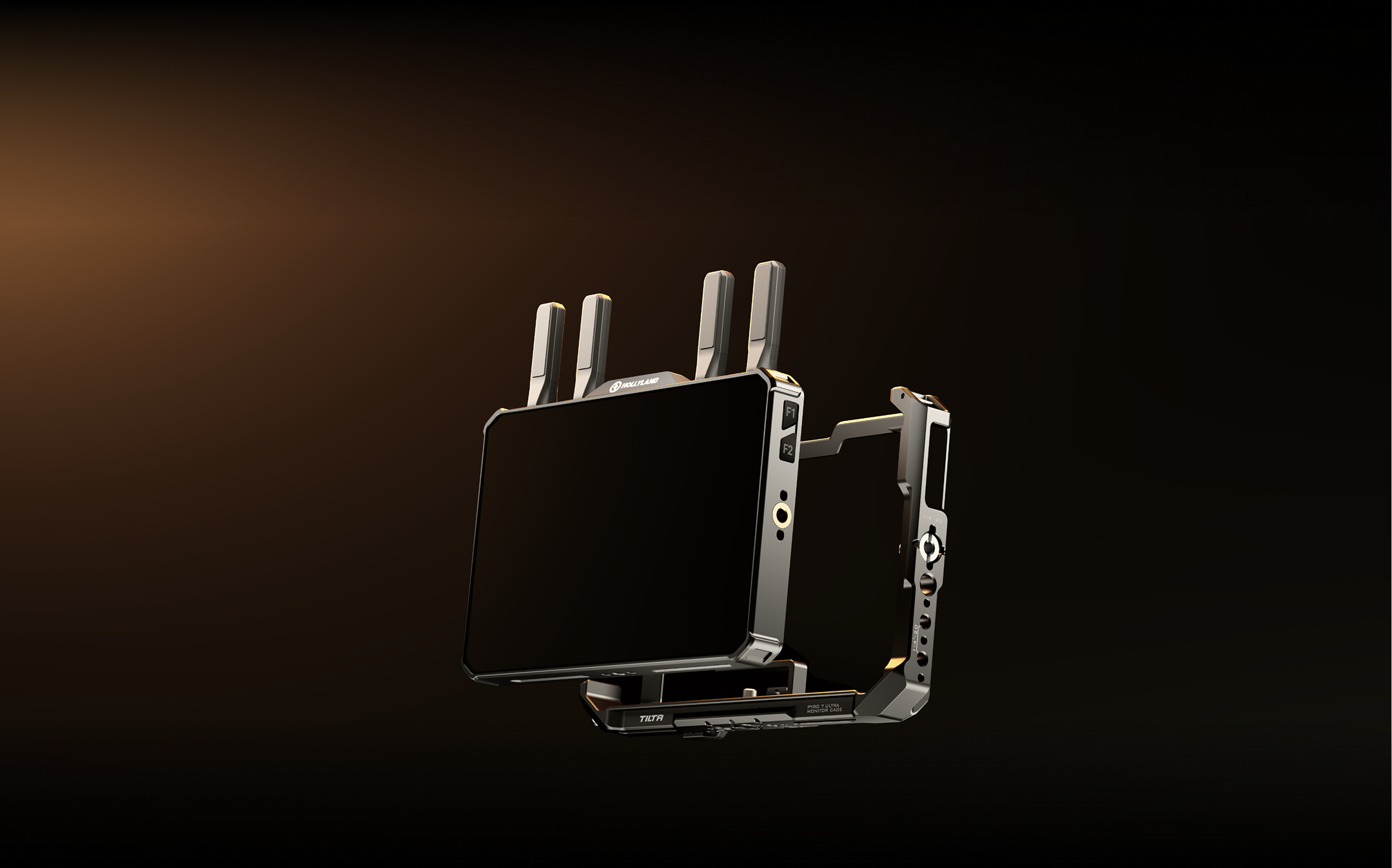

Developed in collaboration with Tilta, Pyro 7 Ultra is designed for professional cinema setups,
offering compatibility with the Nucleus-M II Wireless Lens Control System
and custom monitor cages for added protection in demanding production environments.
Review Instantly. Direct Remotely.
Video Playback
Record video on set and review footage instantly with precision playback.
Playback
Reverse Play
Marked Playback
Loop Play
On-screen Marker
Mark shots to coordinate scenes remotely, eliminating
the need for constant on-site adjustments.
All-Scenario Adaptability
Pyro 7 Ultra features HDMI/SDI cross-conversion for flexible signal routing, while an integrated
V-mount plate and DC input ensure non-stop powering in any environment.

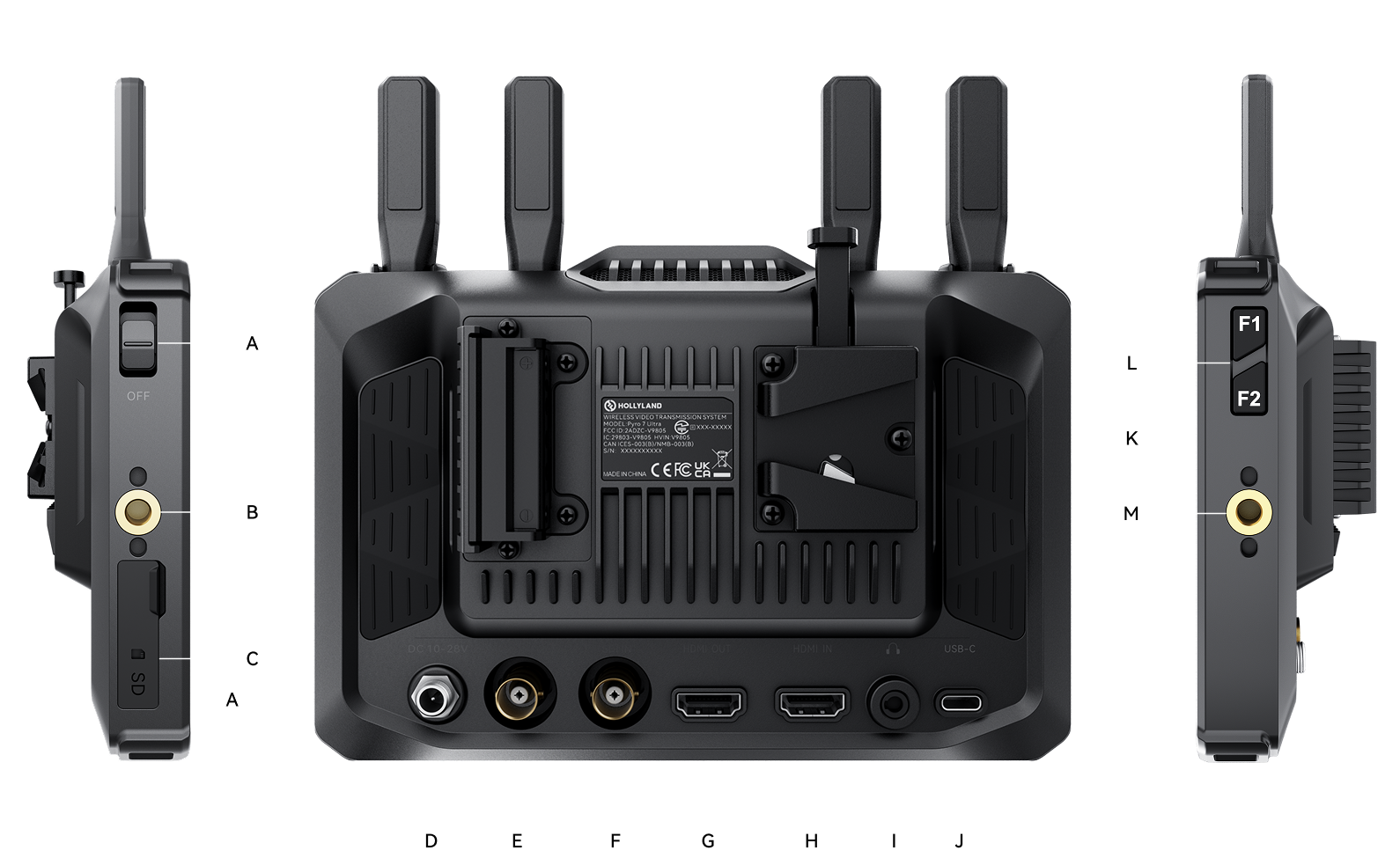

A Power Switch
B 1/4″ Threaded Hole
C SD Card Slot
D DC Input (2.0mm)
E
SDI OUT
F
SDI IN
G
HDMI OUT
H
HDMI IN
I 3.5mm Headphone Jack
J USB-C Data Port
K V-Mount Battery Plate
L Shortcut Buttons *2
M 1/4″ Threaded Hole
Your Package List

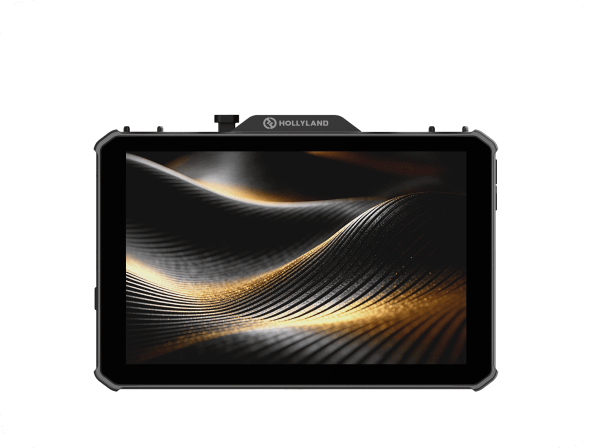

Monitor x 1
Easy-Install Short Antenna x 4

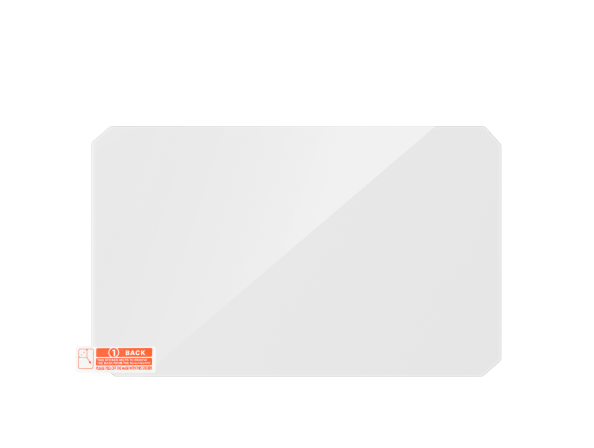

Tempered Glass Screen Protectorx 1

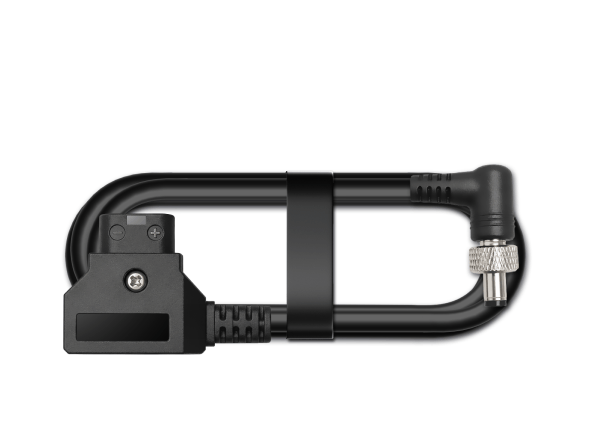

D-Tap to Locking DC PowerAdapter Cable x 1
USB-C OTG Adapter x 1

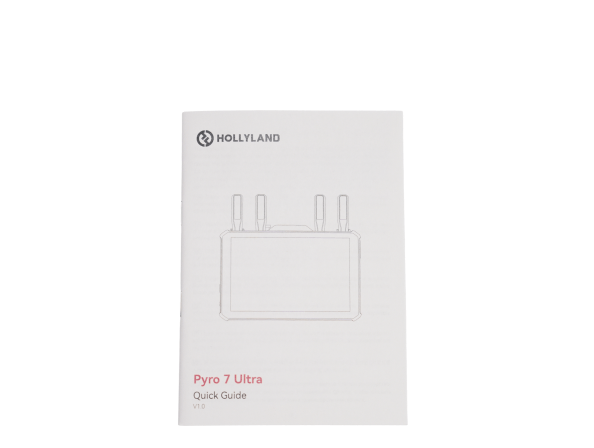

Quick Guide x 1
Specifications
Video Input /Output
HDMI 2.0 + 3G-SDI
Antenna Interface
4 × SMA Male
Power Input
DC Input (2.0mm) /V-Mount Battery
Monitoring
3.5mm Headphone Jack
Data Transmission
USB-C 2.0
Screen Size
7.02″ Touchscreen
Resolution
1920 × 1200
Aspect Ratio
16:9
△E
≤1.5
Color Gamut
Rec.709 ≥ 99% [8]DCI-P3≥95%
Contrast Ratio
1000：1
Brightness
1500 nits
Supply Voltage
10~28V
Power Consumption
TX≤25W / RX ≤20W
Net Weight
≤630g
Dimensions
180*116*46.2mm (including battery plate)
Operating Frequency
5.1–5.8GHz /2.412–2.484GHz
Transmission Power
＜24dBm
Receiver Sensitivity
＞-80dBm
Display Latency
＞27ms
Transmission Latency
＞20ms
Range
1km
Bandwidth
20MHz / 40MHz (Broadcast Mode)
Operating Temperature
-10℃~45℃
Storage Temperature
-40℃~60℃
HDMI Input
4K23.98/24/25/29.97/ 30/50/59.94/60
1080p23.98/p24/ p25/p29.97/p30/p50/ p59.94/p60
720p50/p59.94/p60
HDMI Loop Out/Output
4K23.98/24/25/29.97/ 30/50/59.94/60
1080p23.98/p24/ p25/p29.97/p30/p50/ p59.94/p60
720p50/p59.94/p60
SDI Loop Out/Output
1080p23.98/ p24/p25/ p29.97/p30/ p50/p59.94/p60
1080p23.98/p24/ p25/p29.97/p30/p50/ p59.94/p60
720p50/p59.94/ p60
SDI Input
1080p23.98/ p24/p25/ p29.97/p30/ p50/p59.94/p60
1080i50/i59.94/ i60
1080psf25/ psf29.97/ psf30
1080psf23.98/ psf24
720p50/p59.94/ p60
HDMI Loop Out/ Output
1080p23.98/ p24/p25/ p29.97/p30/ p50/p59.94/p60
1080p30/p29.97/ p25
1080p25/p29.97/ p30
1080p23.98/p24
720p50/p59.94/ p60
SDI Loop Out
1080p23.98/ p24/p25/ p29.97/p30/ p50/p59.94/ p60
1080i50/i59.94/ i60
1080i50/i59.94/ i60
1080p23.98/p24
720p50/p59.94/ p60
SDI Output
1080p23.98/ p24/p25/ p29.97/p30/ p50/p59.94/p60
1080p30/p29.97/ p25
1080p25/p29.97/ p30
1080p23.98/p24
720p50/p59.94/ p60
Note:
The operating frequency and transmission power vary by country and region. Please refer to local laws
and regulations for details.
[1] ≥95% DCI-P3 coverage — Refers to high coverage of the DCI-P3 wide color gamut used in digital
cinema and professional filmmaking. This enables a broader color gamut, producing more vivid colors,
smoother tonal transitions, and more natural image rendering for cinematic production workflows.
[2] The Hollyland Color Calibrator is available as an optional accessory.
[3] Full display controls include Brightness, Contrast, Saturation, Sharpness, Exposure, Color
Temperature, RGB Gain, Calibration.
[4] Image Analysis features include Waveform, Histogram, Zebra, False Color, Rotate, LUT, Mirror,
Anamorphic, Aspect, Safety Frame, Center Marker, Image Overlay, Grid, Focus Peaking, Sharpness.
[5] Supports 1 TX & Unlimited RX in Broadcast Mode only.
[6] Latency Values apply only when Focus Mode is enabled. Minimum latency under standard test
conditions: ≥20 ms at 1080p25/30, ≥40 ms at 1080p60, and ≥45 ms at 4K60.
[7] Non-Broadcast mode: Pyro H, Pyro S, Pyro 5, Pyro 5 4K, Pyro 7, Pyro Ultra, Vcore. Broadcast mode:
Pyro S, Pyro 5, Pyro 5 4K, Pyro 7, Pyro Ultra.
[8] 99% Rec.709 coverage — Refers to near-full coverage of the Rec.709 color space, the industry
standard for SDR broadcast, television commercials, and online streaming content. This ensures accurate
and consistent color reproduction across mainstream video workflows, with minimal color deviation from
production to playback.
