Awaken the Power
Brand-new
Design
0.1s
Low Latency
HDMI & SDI
Multiple Fan
Modes
Direct Video for
Live Streaming
Optimized
Monitoring Feed
Multiple Power
Supply Options
In-App Channel Scan
& Firmware Upgrade
At an upgraded data rate of 12Mbps, the system can easily handle video transmission at 1080p 60 fps, ensuring quality of live broadcasts and preserving details of every picture.
With a transmission distance of up to 400ft (120m) and latency of less than 0.1s, wireless video transmission stays uninterrupted even in a studio that is as big as a soccer field. You can see the video immediately from anywhere.
With the classic SDI + HDMI dual interfaces, you can choose either interface for input or output, and there is no need to use the same type of interface for both input and output. Whether it is a DSLR, mirrorless, or professional camera, you can easily connect it to the transmitter. The receiver supports output via both the SDI and HDMI interfaces at the same time. The system supports video transmission between multiple shooting and monitoring devices, meeting the wireless shooting and monitoring needs of most production teams.
There are three cooling modes available: auto, low, and off. The higher the fan speed, the lower the temperature of the device casing. The fan generates very little noise (the maximum noise level is 55dB). You can choose a cooling mode that meets the needs of the actual shooting.
One transmitter can work with up to two receivers. The system allows two parties (such as the director and lighting control personnel) on the shooting site to simultaneously monitor the shooting with high picture quality at the 12 Mbps data rate and ultra-low latency. Using the system, even a big production or live streaming team can achieve efficient team collaboration.
Smart channel scan finds the best channel for a stable and uninterrupted interference-free
wireless transmission.
Note: The optimum channel is automatically selected after
powerup, with
no manual selection required.

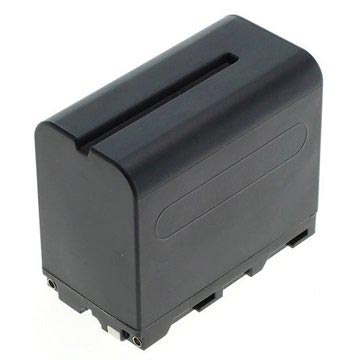

Multiple power supply options ensure continuous power supply for any production situation. These options include an NP-F battery, a power bank, a USB charger with a USB-C interface, or a DC adapter.
A mobile phone or tablet, with the app installed, can support monitoring. The app also functions as a tiny monitor and provides multiple auxiliary functions such as brightness histogram, frame marking, and zooming. Up to 4 mobile phones or tablets can be used for monitoring at the same time.
Transmitter x1
Receiver x1
Antenna x5
DC Adapter x1
User Manual x1
HDMI Input (Type A Female)
SDI Input
2 Antenna Interfaces (RP-SMA Male)
DC Input
USB-C
DC Power Input: 6-16V
USB-C Power Supply: 5V/2A
Battery Power Supply: 6-16V DC
<11W
206g (7.3oz)
(L x W x H): 110mm x 72mm x 33.5mm (4.33" x 2.83" x 1.32")
(Battery Plate Excluded)
HDMI:
480p60
576p50
720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.9/30
1080p50/59.94/60
SDI:
1080p60/59.94/50 (Level A)
1080p60/59.94/50 (Level B)
1080i60/59.94/50
1080p30/29.97/25/24/23.98
1080psf25
720p60/59.94/50
1080psf24/23.98
5GHz
OFDM
Maximum 21dBm
/
0.1s
20MHz
HDMI Output (Type A Female)
SDI Output
2 Antenna Interfaces (RP-SMA Male)
DC Input
USB-C
DC Power Input: 6-16V
USB-C Power Supply: 5V/2A
Battery Power Supply: 6-16V DC
<7W
206g (7.3oz)
(L x W x H): 110mm x 72mm x 33.5mm (4.33" x 2.83" x 1.32")
(Battery Plate Excluded)
HDMI:
480p60
576p50
720p50/60
1080i50/60
1080p24/25/30
1080p50/60
SDI:
1080p60/50 (Level A)
1080i60/50
1080p30/25/24
720p60/50
1080i50 (1080psf25/24/23.98 input)
1080i60 (1080psf30/29.97 input)
5GHz
OFDM
/
-80dBm
0.1s
20MHz
