Designed by experts with profound knowledge and market insight, Cosmo C2 features a powerful 2TX & 1RX
design for enhanced wireless competence and boasts an ultra-long LOS range of 3,000ft (1,000m) and a
super-low latency of just 33ms. Adopting the newly self-developed HEVO 2.0 technology, it supports
seamless frequency hopping, thus ensuring a smooth and immersive experience. Combined with other
powerful features and functions like NDI, UVC and RTMP streaming, this innovative kit will prove to be
a great help for multi-camera livestreaming, broadcast, and more.
Simplifying Setup
2TX & 1RX Solution
Cosmo C2 enables transmission between two transmitters and one receiver. This setup reduces the number of
devices and cables needed, lessens wireless interference, and guarantees better synchronization of video
feeds, all of which add to a more productive workflow.
1,000m (3,000ft)
More Range
Cosmo C2 boasts an ultra-long line-of-sight (LOS) transmission range of up to 1,000m (3,000ft), making it ideal
for professional use in large venues, open areas, and complex buildings.
33ms
Less Latency
Cosmo C2 achieves a super-low latency of just 33ms[1] and the latency remains the same over extended
distances,
thus ensuring smooth and reliable transmission.
Brand New
HEVO 2.0
Following a comprehensive upgrade, HEVO 2.0 technology redefines the experience.
With extended transmission range, lower latency, and support for dual transmitters and one receiver, Cosmo C2 aims to elevate your workflow.
With extended transmission range, lower latency, and support for dual transmitters and one receiver, Cosmo C2 aims to elevate your workflow.
Compare with HEVO 1.0
Up to
18% faster
Latency
Up to
186% Greater Range
Wireless transmission capability
Intelligent
Seamless Frequency Hopping
Powered by self-developed HEVO 2.0 technology, Cosmo C2 automatically detects surrounding frequency interference
and seamlessly switches to a clean channel, which ensures uninterrupted transmission and an immersive
experience.
Streamlined
Live Streaming
Cosmo C2 supports UVC streaming[2] as well. With a USB-C to USB-C or USB-C to USB-A
cable[3],
you can directly connect the receiver to any computer without the need for capture cards, simplifying the
real-time transmission of on-site video.
Cosmo C2 enables RTMP streaming, a streaming method widely used for its low latency and compatibility with a
wide range of live streaming platforms, such as YouTube and Twitch.
Improve Your Workflow
NDI Protocol Support
The receiver of Cosmo C2 supports Network Device Interface (NDI) protocol, allowing video streams to be
transmitted over a single network cable. This eliminates the complexity and clutter of connections and
creates a cleaner production space.
Smoother
FPS Booster[4]
Through brand-new frame rate compensation algorithm, the RX can convert low frame rate inputs such as 24/25/30P
to a high frame rate output at 60P, making the visuals smoother.
low frame rate
high frame rate
Seamless Connectivity
Comprehensive Ports
HDMI & SDI full coverage
Multiple Ports
Unlimited Creation
Unlimited Creation
HDMI & SDI full coverage
Multiple Ports
Unlimited Creation
Unlimited Creation

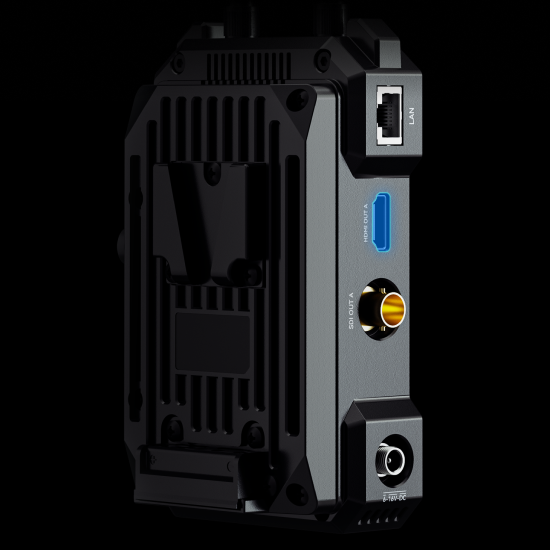

1HDMI OUT B
23G-SDI OUT B
3USB-C
4RJ-45 Port
5HDMI OUT A
63G-SDI OUT A
7DC Power Input
1USB-C
2HDMI IN
33G-SDI IN
43G-SDI LoopOut
5DC Power Input
Flexible
Fractional Frame Rate
Cosmo C2 can transmit HDMI/SDI fractional frame rate input and output, catering to your flexible needs while
shooting.
Broadcast
EFP
Events
Weddings
Concerts
Church
Unfailing Power
Versatile Power Options
The Cosmo C2 transmitter supports DC (locking) and NP-F batteries while the receiver supports DC (locking)
and V-Mount batteries, ensuring your production keeps going at all times.
The Cosmo C2 transmitter supports DC (locking) and NP-F batteries while the receiver supports DC (locking)
and V-Mount batteries, ensuring your production keeps going at all times.
Customizable
Frozen Frame
When transmission is interrupted, Cosmo C2 freezes the last frame of the video feed, preventing the display of
the manufacturer’s logo. You can also customize the logo image as you please with a USB flash drive.
Output Image
Customized Image
Choose Your Cosmo C2
Whether it is live production or professional filming, you can find a set of equipment that meets your needs.
Wireless Video Transmitter x 2
Wireless Video
Receiver x 1
Blade Antenna x 7
USB-C OTG Adapter x 1
12V/2A DC Power Adapter x 1
Cold Shoe x 2
Expansion Accessory x 2
Cosmo C2 Carry Case 01 (2TX+1RX) x 1
Warranty Card x 1
Compliance Information Card x 1
User Manual x 1
Packing List Card x 1
Wireless Video Transmitter x 1
Wireless Video Receiver x 1
Blade Antenna x 5
USB-C OTG Adapter x 1
12V/2A DC Power Adapter x 1
Cold Shoe x 1
Expansion Accessory x 1
Cosmo C2 Carry Case 02 (1TX+1RX) x 1
Warranty Card x 1
Compliance Information Card x 1
User Manual x 1
Packing List Card x 1
Wireless Video Transmitter x 1
Blade Antenna x 2
USB-C OTG Adapter x 1
Warranty Card x 1
User Manual x 1
Packing List Card x 1
Upgrade Your Setup More Accessories
Crab Clamp
D-TAP to DC 2.1 Power Supply Cable
Soft Antenna
Mushroom Antenna
Specs
Transmitter
Receiver
Port
DC Input: 2.0mm Core Socket
HDMI Input: HDMI 1.4b
SDI Input: 3G SDI
SDI Loopout: 3G SDI
USB-C: USB 2.0 OTG
Antenna: SMA Male
HDMI Input: HDMI 1.4b
SDI Input: 3G SDI
SDI Loopout: 3G SDI
USB-C: USB 2.0 OTG
Antenna: SMA Male
DC Input: 2.0mm Core Socket
HDMI Output: HDMI 1.4b × 2
SDI Output: 3G SDI × 2
USB-C: USB 2.0 OTG
Antenna: SMA Male
Ethernet Port: RJ45,100 Mbps
HDMI Output: HDMI 1.4b × 2
SDI Output: 3G SDI × 2
USB-C: USB 2.0 OTG
Antenna: SMA Male
Ethernet Port: RJ45,100 Mbps
Power Supply
NP-F Battery Voltage Range: 6.8 – 8.4V
DC Voltage Range: 6 – 16V
DC Voltage Range: 6 – 16V
V-Mount Battery Voltage Range: 11.8 – 16.8V
DC Voltage Range: 6 – 16V
DC Voltage Range: 6 – 16V
Power Consumption
< 10W
< 11W
Net Weight
210g
440g
Dimensions (L × W × H）
114.8 × 69 × 35.5mm (4.5 × 2.7 × 1.4″)
142 × 87.2 × 33.2mm (5.6 × 3.4 × 1.3″)
Operating Frequency
5.15 – 5.85 GHz
5.15 – 5.85 GHz
Transmit Power
< 23 dBm
/
Receiver Sensitivity
/
−90 dBm
Latency
≥ 33ms
≥ 33ms
Bandwidth
40 MHz
40 MHz
Input/Output Format
HDMI/SDI Input
SDI Loopout
720p/59.94/60
1080i50/59.94/60
1080p23.98/25/29.97/30
1080p50/59.94/60
SDI Loopout
720p/59.94/60
1080i50/59.94/60
1080p23.98/25/29.97/30
1080p50/59.94/60
HDMI/SDI Output
720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60
720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60
Note:
1. The data is based on Hollyland laboratory results.
2. Mac only supports receiving one of the UVC videos.
3. The cable needs to be a data cable.
4. FPS Booster is disabled by default. When enabled, the RX end screen will display "FPS Booster."
1. The data is based on Hollyland laboratory results.
2. Mac only supports receiving one of the UVC videos.
3. The cable needs to be a data cable.
4. FPS Booster is disabled by default. When enabled, the RX end screen will display "FPS Booster."
