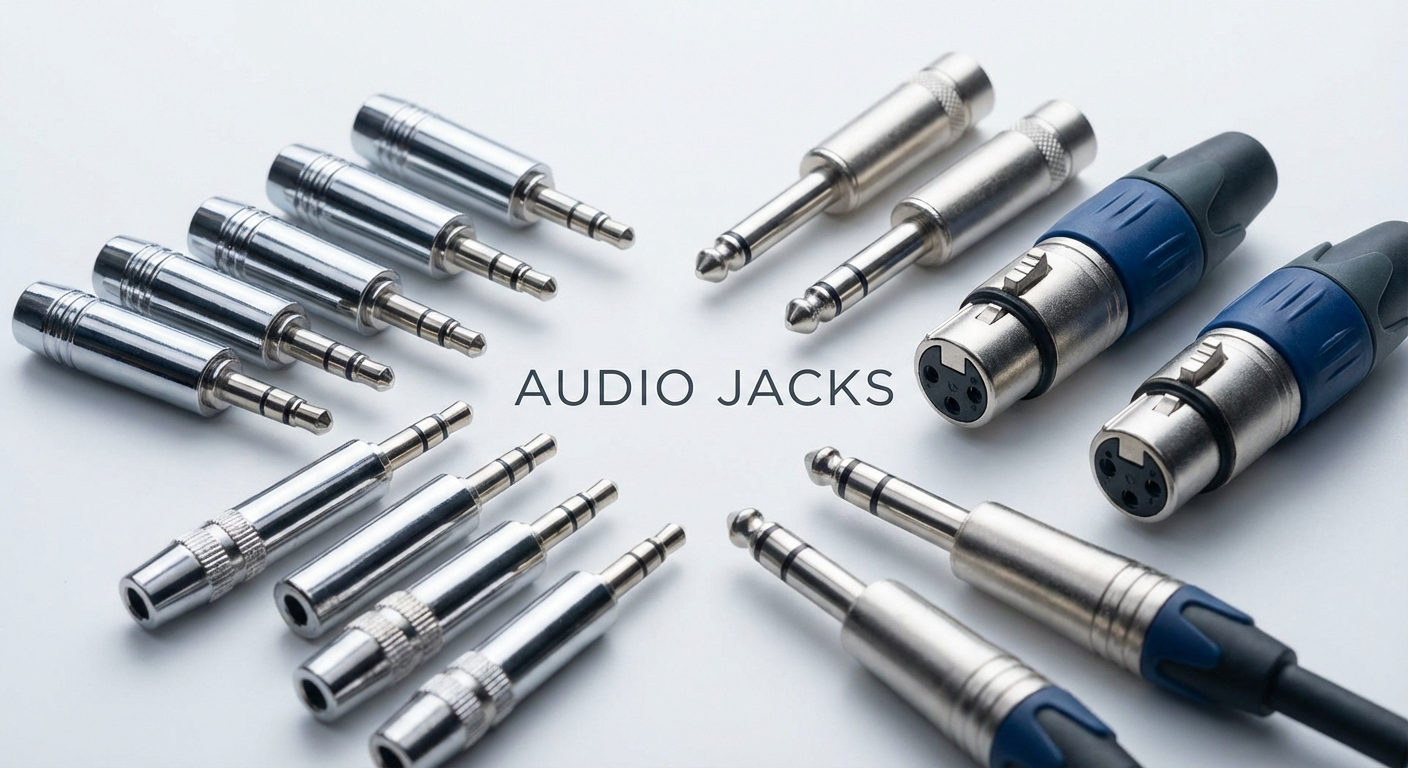

Understanding 2.5 mm and 3.5 mm Audio Jacks

If you use headphones, then you are surely familiar with the audio jacks. These are the connector points for the headphones. Audio jacks come in various shapes and sizes, but the most common are 2.5mm and 3.5mm audio jacks. These small electronic components play an important role in enabling audio transmissions in multiple formats. However, to better understand 2.5mm and 3.5mm audio jacks, you need to know every detail about them. Here we have discussed the difference between 2.5mm and 3.5mm audio jacks.

Difference between the 2.5mm and 3.5mm Audio Jacks

To better understand the difference between 2.5mm and 3.5mm audio jacks, we have categorized the details below:

2.5mm and 3.5mm Audio Jacks

Physical Differences

Both of the audio jacks come with different diameters. Anyone can easily identify them by their appearance and shape. The first fact is the physical formation, 2.5mm jacks are smaller than 3.5mm audio jacks. If you purchase the audio jack, you must understand the difference between them.

  • 2.5 mm Audio Jack, Small Diameter

It is also known as a sub-miniature TRS connector. The smaller diameter makes it perfect for older phones or other communication equipment. It quickly fitted with smaller ports. The 2.5 audio jacks are not as popular as the 3.5mm but still used in most phones and systems.

  • 3.5 mm Audio Jack, Standard Size

This is the standard size of audio jack that is used in almost all the latest systems and phones. 3.5 mm jacks are also known as mini jacks.

Compatibility

The audio jacks have evolved with time, and 2.5mm jacks are older than 3.5mm jacks. That is why it supports the minimum number of systems and devices.

Compatibility of Audio jacks
  • 2.5 mm Jack Devices: Connect with a few systems

Don’t be confused if your 2.5mm jacks do not support your current system. These small audio jacks work with older phones and systems. Cordless phones and two-way radios are good examples of this. It works efficiently with less power, but now this sub-mini jack is not used in mainstream audio devices.

  • 3.5 mm Jack Devices: Common Audio Jack

Now most of the earphones and headphones come with 3.5mm audio jacks. These are the most common audio jacks that are easily compatible with any device. Most smartphones, laptops, and gaming consoles provide 3.5 mm audio jacks.

Connector Types

The type of connector for audio jacks plays an important role in performance and efficiency. TRS and TRRS are two kinds of connectors used in audio jacks.

Types of connectors
  • TRS (Tip, Ring, Sleeve)

Both 2.5 mm and 3.5 mm jacks come in TRS configurations, suitable for stereo audio output. It helps to balance signals that eliminate noise.

  • TRRS (Tip, Ring, Ring, Sleeve)

Adds a fourth conductor for the microphone or video. Both sizes are available in TRRS configurations, but the 3.5 mm version is more common in modern devices.

Audio Quality

The audio quality is not directly affected by the size of the jack. The device’s DAC (digital-analogue converter) and the quality of the audio source have an impact on the audio quality. However, the 3.5 mm jack is more commonly associated with high-quality audio devices.

Adapters

Adapters are available to convert 2.5 mm to 3.5 mm and vice versa, allowing for compatibility across devices. However, it’s important to ensure that the adapter supports the correct TRS or TRRS configuration for your devices.

How do you Record high-quality Audio?

You can record high-quality audio using a professional wireless microphone, such as Lark M1, which is equipped with advanced noise cancellation technology. It will enable you to record audio in high quality, as it offers superior sensitivity and clarity.

hollyland lark m1 compact lavalier microphone

Hollyland Lark M1

Wireless Lavalier Microphone with High-Quality Audio.

Wrap It Up

We hope the information above has undoubtedly made it easier for you to understand 2.5 mm and 3.5 mm audio jacks. Both audio jacks are compatible with different systems and provide a premium sound experience. Almost both works are similar and give the same audio experience. You can also take advantage of an adapter to utilize 2.5mm with a 3.5mm jack.

FAQs

Q1. Can I use a 2.5 mm headset with a 3.5 mm phone?

No, you can’t directly use a 2.5 mm headset with a 3.5 mm phone. With the help of an adaptor, you can convert 2.5 to 3.5 or vice versa. Make sure the TRS or TRRS is configured with the system.

Q2. Is there a difference in sound quality between 2.5 mm and 3.5 mm audio jacks?

No, the size of the audio jacks does not impact the sound quality. However, the DAC of the device may enhance the quality of sound.

Q3. How do I know if I need a TRS or TRRS connector?

The two bands represent TRS, and the three bands represent TRRS connectors. If you want to use mono, stereo, and mic signals that go for the TRRS audio jack.

Q4. Are 2.5 mm audio jacks still used today?

Now, 2.5mm audio jacks are not common, this is used in cordless phones, mobile phones, and two-way radios.

Q5. What devices typically use a 3.5 mm audio jack?

The 3.5 mm audio jacks are commonly used in all the latest gadgets, smartphones, and PCs.

Q6. Can I convert my 3.5 mm headphones to work with a 2.5 mm jack?

Yes, with the help of an adaptor, you can quickly fit your 3.5mm headphone into a 2.5mm jack.

Q7. Is the 3.5 mm jack being phased out?

The 3.5 mm jacks have been around since 1950. But somehow, advanced Bluetooth and wireless headphones are making their own space in the market.

Q8. How can I tell if my device uses a 2.5 mm or 3.5 mm audio jack?

Simply see the size of the audio jack; the 2.5mm jacks are smaller in size. The small round connector on your device is used for 2.5mm, and the bigger round is used for a 3.5mm audio jack.
